VPN Access Required:
Ensure your VPN (Virtual Private Network) connection is active before attempting to access ArgoCD.

​
Prerequisites

You will need:
  • An active VPN connection to your organization’s private network
  • AWS Single Sign-On (SSO, now AWS Identity Center) access with ArgoCD application permissions

​
Accessing ArgoCD

1

Navigate to AWS Access Portal

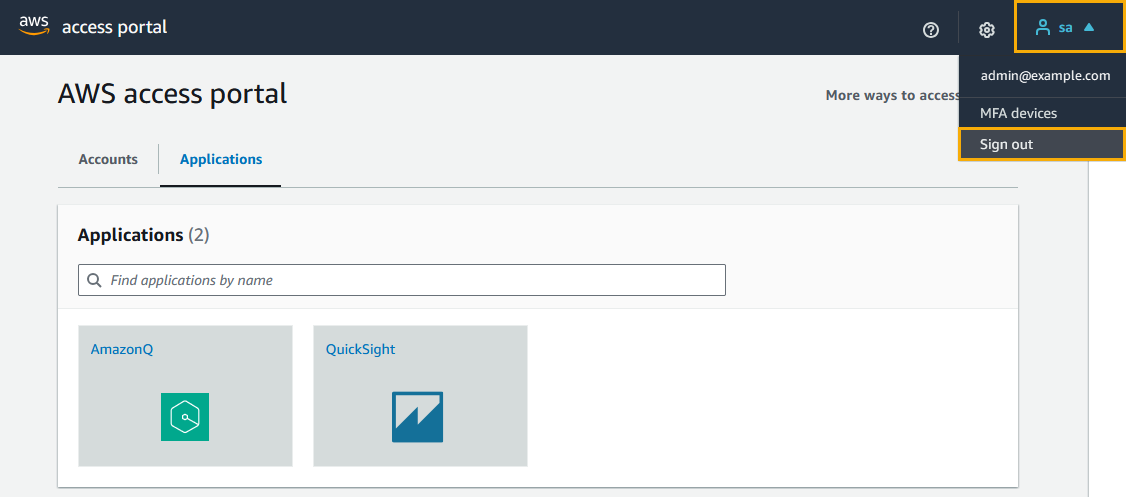

Open the AWS Access Portal and go to the Applications tab.AWS Access Portal Applications Tab
2

Launch ArgoCD Application

Click on the ArgoCD application tile. You’ll be authenticated automatically using your SAML (Security Assertion Markup Language) credentials.
3

Navigate Projects

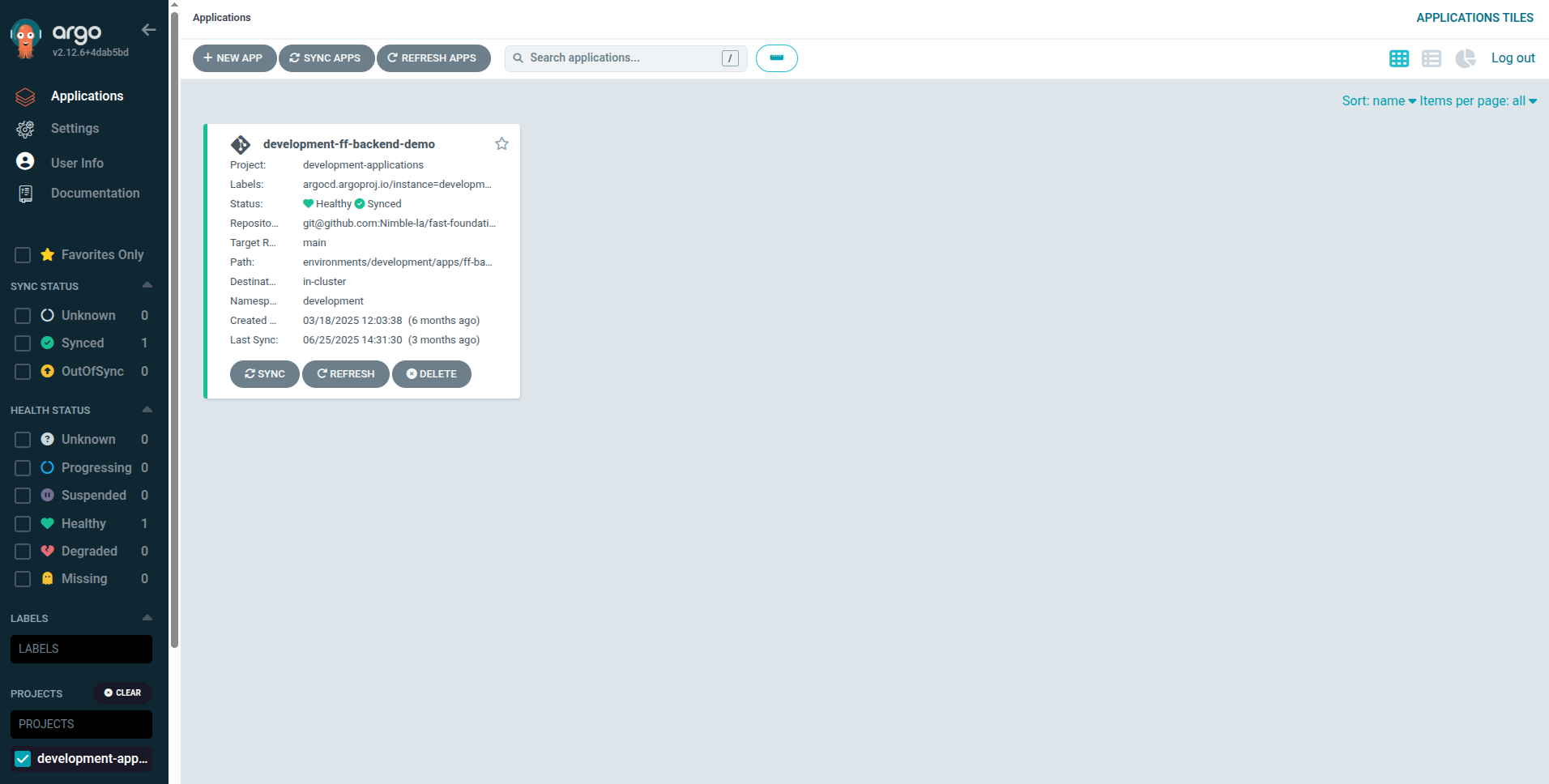

Once inside, applications are organized by ArgoCD Projects. Use the left-hand panel to switch between projects and access your assigned applications.ArgoCD Applications Overview

​
Managing Applications

​
Application Overview

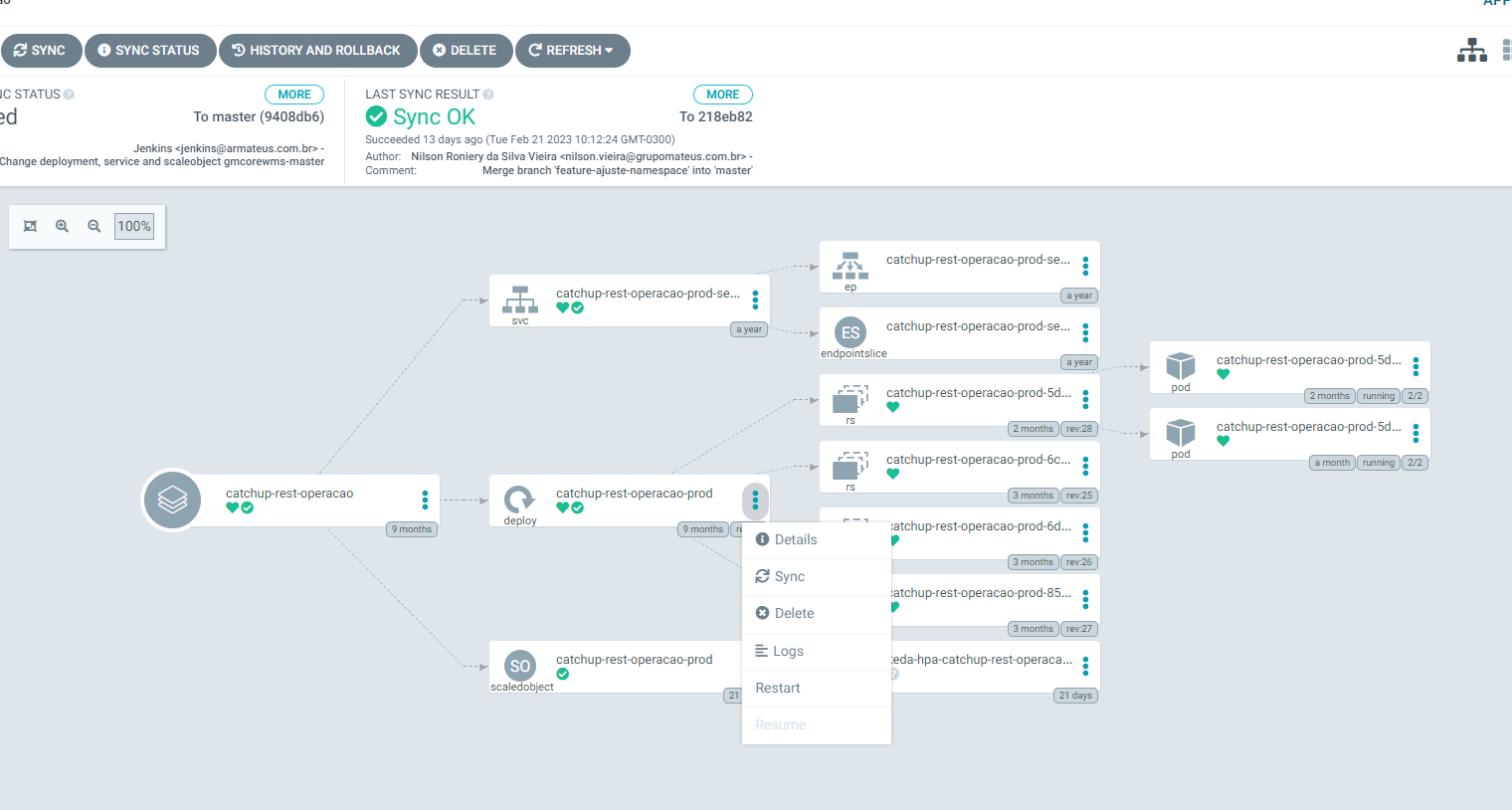

Every application view in ArgoCD provides a visual map of your Kubernetes resources and their relationships. ArgoCD Application Details View

​
Common Operations

​
Restarting Application Pods

Safe Rollout: Pod restarts in ArgoCD use rolling updates, so your application remains available during the restart.
Steps:
  1. Open your application’s detail view
  2. Locate the deploy component (this controls Kubernetes pods)
  3. Select the restart option to safely roll out new replicas
When to use this:
  • Updating injected secrets or environment variables
  • Applying configuration changes
  • Fixing stuck or unhealthy pods

​
Viewing Application Logs

Temporary Logs Only:
ArgoCD UI logs are for short-term troubleshooting. They are not persisted.
For long-term or production logging, use your organization’s observability platform.
Access real-time logs directly in the ArgoCD UI to debug issues or verify application behavior. From the application overview dashboard, select your pod and open the Logs tab to view the output immediately.

​
Application Rollback

When you need to rollback an application deployment, you have two options depending on the situation:
GitOps Best Practice: The cleanest rollback method is reverting the problematic commit in the manifests repository, allowing ArgoCD to automatically sync the previous state.
  1. Identify the problematic commit in your manifests repository (not your application code repository):
    # Navigate to your manifests repository first
cd /path/to/your/manifests-repo

# View recent commits to find the problematic one
git log --oneline -10
  2. Create a revert commit using Git:
    git revert <commit-hash>
git push origin main
  3. Monitor ArgoCD - the application will automatically sync to the reverted state
  4. Verify deployment - ensure the application returns to the expected state
This approach maintains GitOps principles and provides a clean audit trail.

​
Option 2: Manual Rollback (Emergency Procedure)

Breaking Glass Feature: Manual rollback is an emergency procedure that requires admin permissions and temporarily disables auto-sync for all applications in the environment. Use only when Git revert is not possible or immediate action is required.
This procedure is rarely needed since ArgoCD typically prevents deployment of failed applications and Git revert should be the first option. However, for emergency manual rollbacks:
1

Access Infrastructure Tooling Project

Go to the infrastructure-tooling ArgoCD project.
⚠ You need admin access to continue.
2

Locate Ruling Application

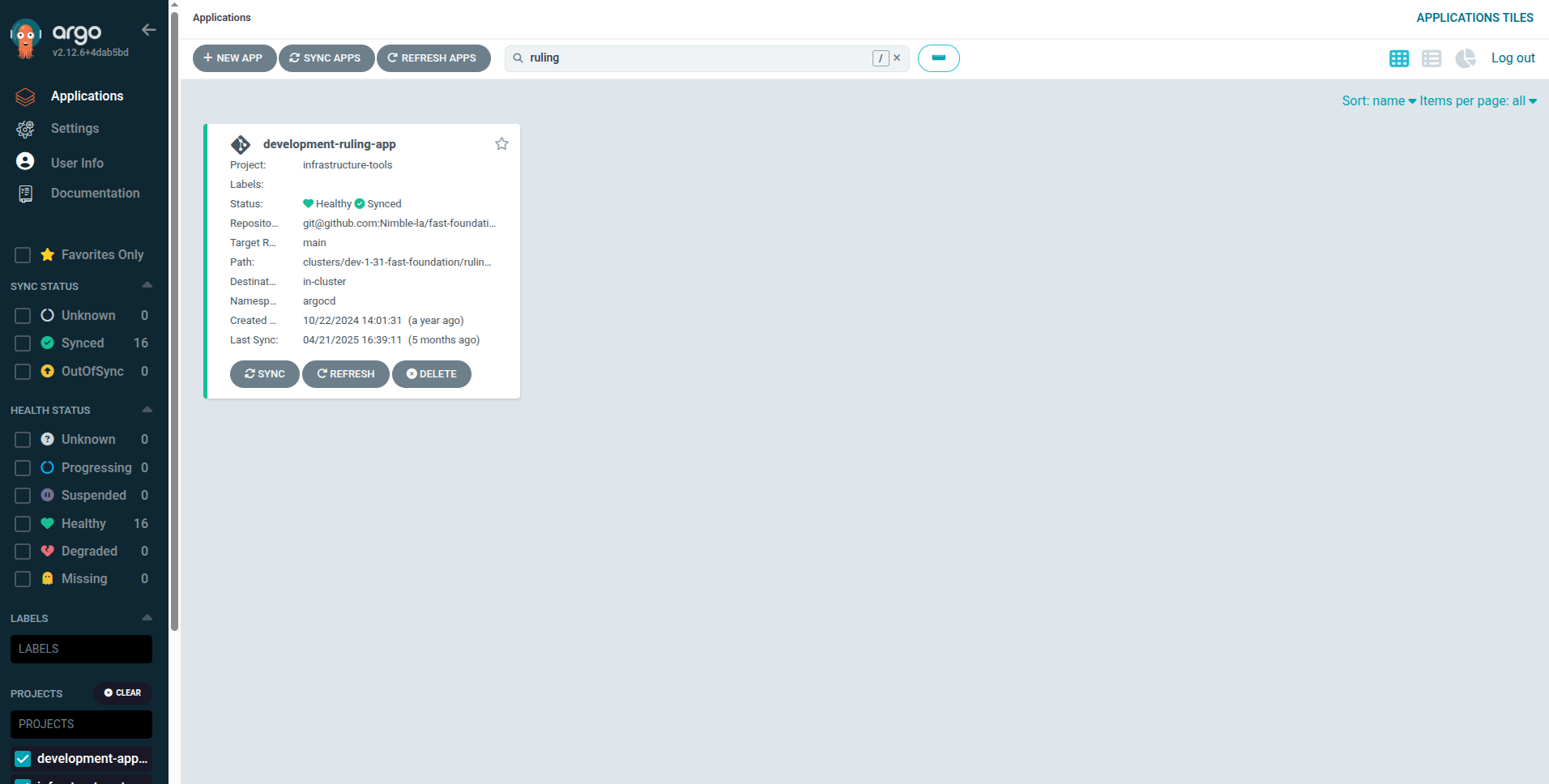

Search for the <environment>-ruling-app (e.g., production-ruling-app, staging-ruling-app).ArgoCD Ruling Application
3

Disable Auto-Sync on Ruling App

  1. Enter the ruling application
  2. Open Details
  3. Scroll to Sync Policy
  4. Disable Auto-Sync

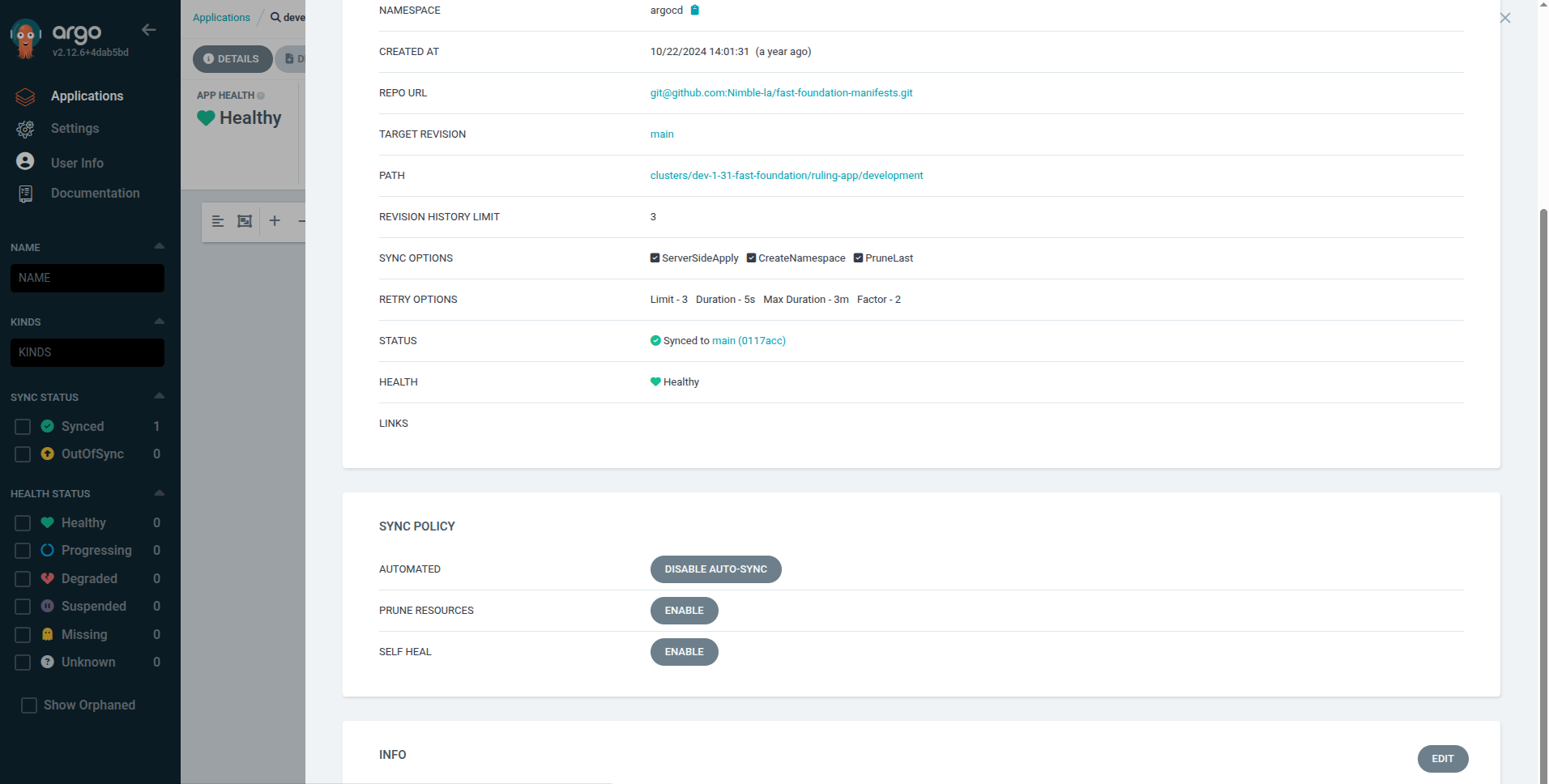

Disable Auto-Sync in ArgoCD
4

Disable Auto-Sync on Target Application

Go to your target application in the <environment>-applications ArgoCD project.
Repeat the auto-sync disabling process.
5

Perform Rollback

  1. In your application details, open History and Rollback
  2. Select the version you want to redeploy
  3. Execute the rollback

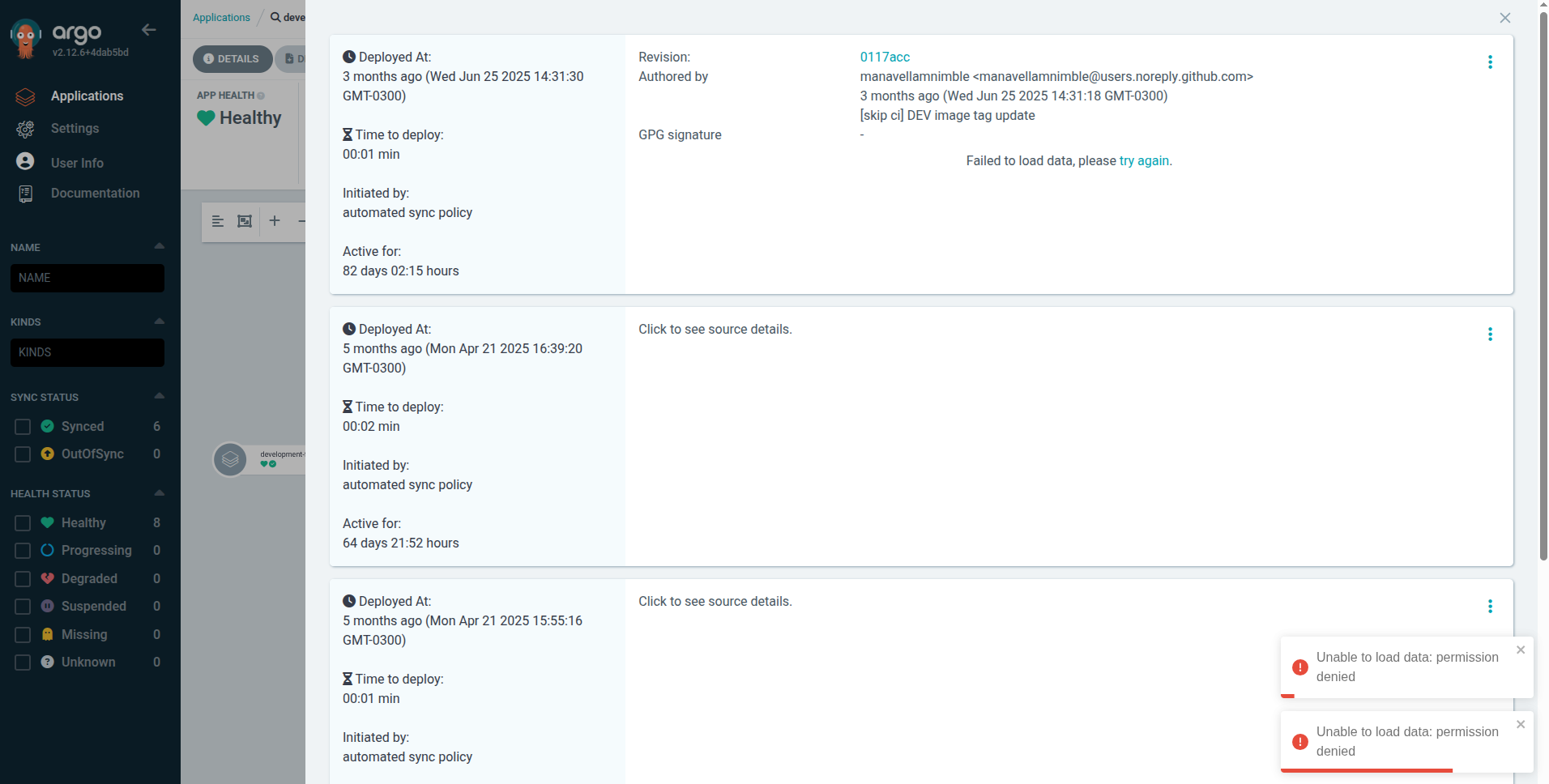

ArgoCD Application Rollback
Important Considerations:
  • Disabling auto-sync here affects all applications in the environment
  • The <environment>-ruling-app is managed by Terraform → do not run terraform apply for the EKS module during rollback
  • Always re-enable auto-sync once the issue is resolved
  • Coordinate with your team before triggering a rollback
  • Document both the reason for rollback and the plan to restore normal sync
